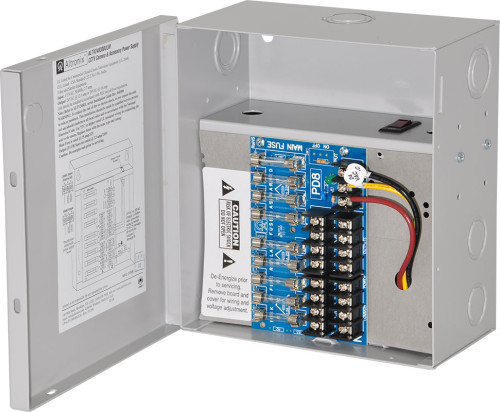

Altronix ALTV248300ULM CCTV Power Supply, 8 Fused Class 2 Outputs, 24/28VAC @ 12.5A, BC100M Enclosure

Altronix ALTV248300ULM CCTV Power Supply, 8 Fused Class 2 Outputs, 24/28VAC @ 12.5A, BC100M Enclosure

$300.00
$175.00

Altronix ALTV248300ULM CCTV Power Supply, 8 Fused Class 2 Outputs, 24/28VAC @ 12.5A, BC100M Enclosure



  • Input
    • 115VAC, 50/60Hz, 2.7A.
  • Output
    • Eight (8) fuse protected outputs.
    • 24VAC @ 12.5A (300VA) supply current (1.563A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (1.25A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 154 BTU/Hr.
        • 28VAC: 143 BTU/Hr.
    • System AC input VA requirement: 310.5VA.
  • Features
    • Secondary fuse rated @ 15A/32V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).
